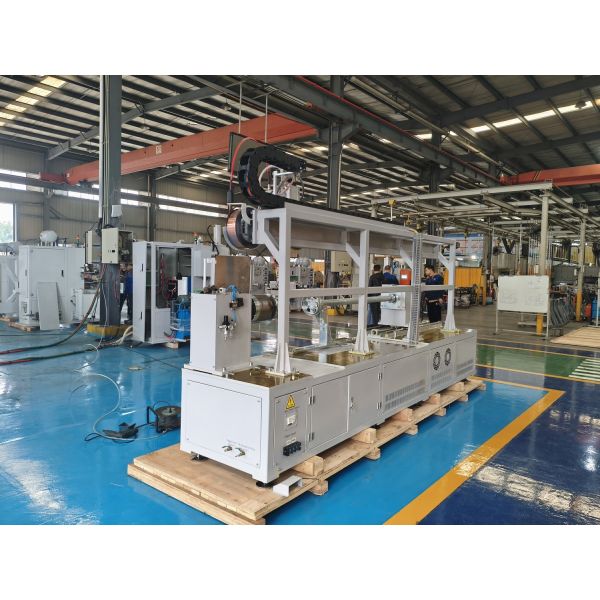

Optical Automatic Fiber Laser Welder 2000W Welding Equipment For Cylindrical Parts
Product Introduction:
A drum laser automatic welding machine specializing in pipe welding, achieving fast loading and one click welding. By simply placing the workpiece and starting it, the equipment can automatically complete the entire process of clamping, positioning, rotating welding, and resetting, with a welding thickness covering 0.5-4mm. Its workpiece rotation and laser stationary design ensure a stable and uniform welding process, significantly improving batch production efficiency and joint consistency in industries such as vehicles, cabinets, and metal products.
Features:
1. Efficient automatic welding: One click start of the fully automatic welding process, automatic alignment, welding, and reset after manual feeding, greatly improving production efficiency.
2. Wide material compatibility: Suitable for various metals such as stainless steel and carbon steel, with weldable plate thicknesses ranging from 0.5 to 4mm, meeting diverse workpiece requirements.
3. High precision butt welding: Using laser high-energy focusing technology, seamless butt welding of 1.5mm thin-walled metal pipes is achieved, with beautiful and firm weld formation.
4. Flexible adjustment of welding gun: The multidimensional moving mechanism of the gun head supports quick debugging and adapts to different pipe diameters and welding position requirements.
5. Fully automatic cycle operation: The entire process from start-up, light output, rotary welding to reset is automated, reducing manual intervention and lowering operational difficulty.
Technical Parameters:
| | Handheld laser welding machine |
| | | |
| | 220V + 10%, 50Hz; Rated curent: < 14A | 3 8 0 V±5 % ,5 0 H z ,Rated curent: ≤2 5 A |
Environmental Requirements | Temperature 5-40℃; Humidity 10-90% |
| | Water Cooling (dual temperature and dual control) |
| | ≤士2%24-hour (continuous operation) |
| | |
| | |
| | |
| | |
| | |
| | |
| | |

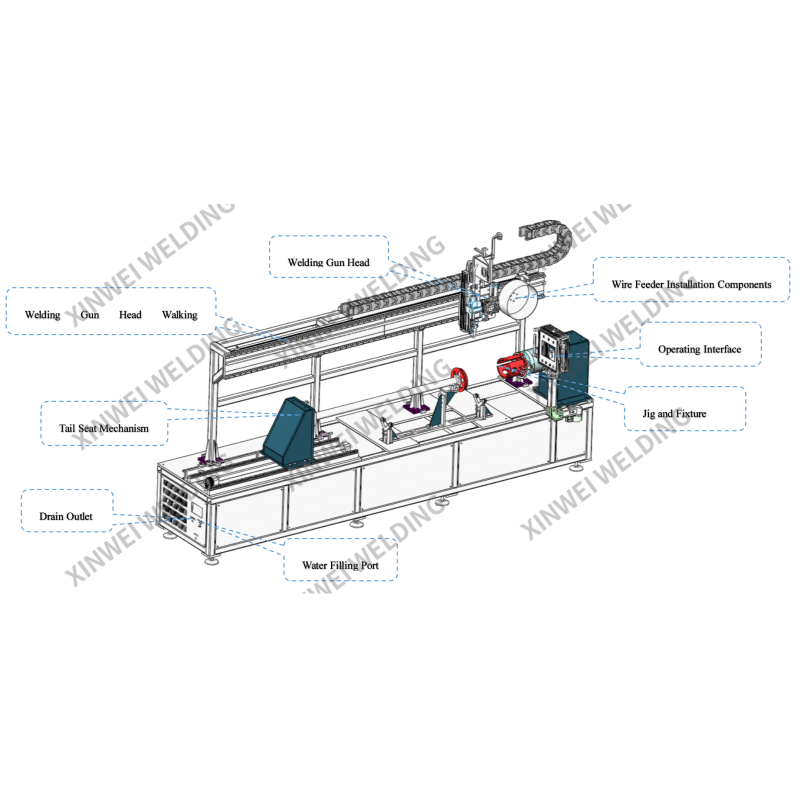

General Structures:
Detailed Images:
1. Precision Rotary Welding
The design of workpiece rotation and welding gun fixation ensures uniform and stable circumferential welds, especially suitable for circular workpiece docking.

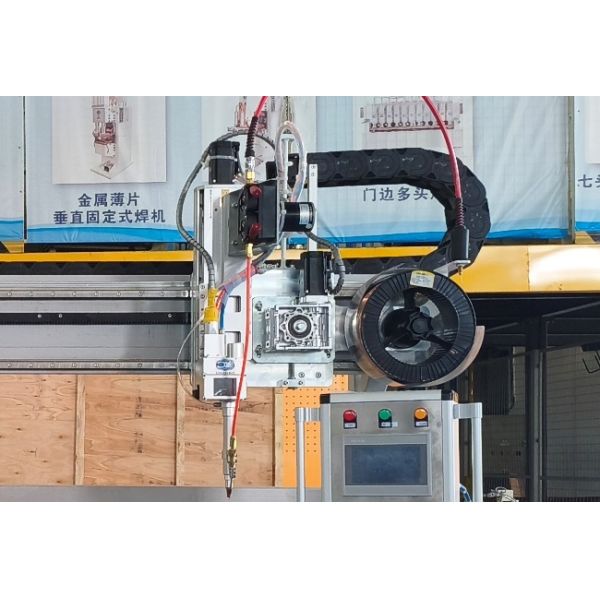

2. Flexible Welding Gun Adjustment
The welding gun is equipped with precision guide rails that can be flexibly adjusted left, right, up, and down to quickly and accurately locate the welding position.
3. Strong Adaptability Fixture
The total length of the tooling is over one meter, and the clamping system is compatible with multiple pipe diameters to meet the requirements of different pipe diameters and welding positions.
4. Human-computer Interaction Interface
Equipped with an intuitive touch screen, welding parameters can be set with one click, real-time display of working status and alarm information, easy operation, and convenient monitoring.
Scene Images:
Application:
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
